Initialization
Table of Contents
Setup#
The most basic integration of @porsche-design-system/components-angular looks like this.
@NgModule({
declarations: [AppComponent],
imports: [BrowserModule, AppRoutingModule, PorscheDesignSystemModule],
providers: [],
bootstrap: [AppComponent],
schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}
Internally PorscheDesignSystemModule is calling load() of @porsche-design-system/components-js since the web
components are exactly the same.
In fact, the framework specific packages like @porsche-design-system/components-angular only provide thin wrapper
components for typing, prop binding and good developer experience just like with any other Angular component.
For more details what happens when load() is invoked, please take a look at the
Vanilla Js Setup.
Mounting#
In the example from above we didn't render any component, yet, so let's render a single p-button.
<p-button>Hello</p-button>
Once rendered, this produces a p-button tag in the DOM.
From here on the exact same things happen as described at
Vanilla Js Preparation and
Vanilla Js Connect Lifecycle.
In any JavaScript framework, the available wrapper components' purpose is typing, rendering a web component into the DOM and
syncing framework props to the rendered component. Once rendered, the web component has its own lifecycle and is not aware of any framework.
Prop Changes#
In case of a prop change the Angular p-button renders again and synchronizes its properties to the rendered p-button
element. What follows is, again, exactly as documented at
Vanilla Js Change Lifecycle.
Unmounting#
Once the Angular p-button is not needed anymore, e.g. when conditionally rendered or navigating away, the p-button
element is removed from the DOM. What happens additionally can be found at
Vanilla Js Disconnect Lifecycle.
Optimization#
Now that it is clear what is happening under the hood when a simple p-button is rendered, let's see how this looks
from the perspective of network requests and how to improve them if necessary.

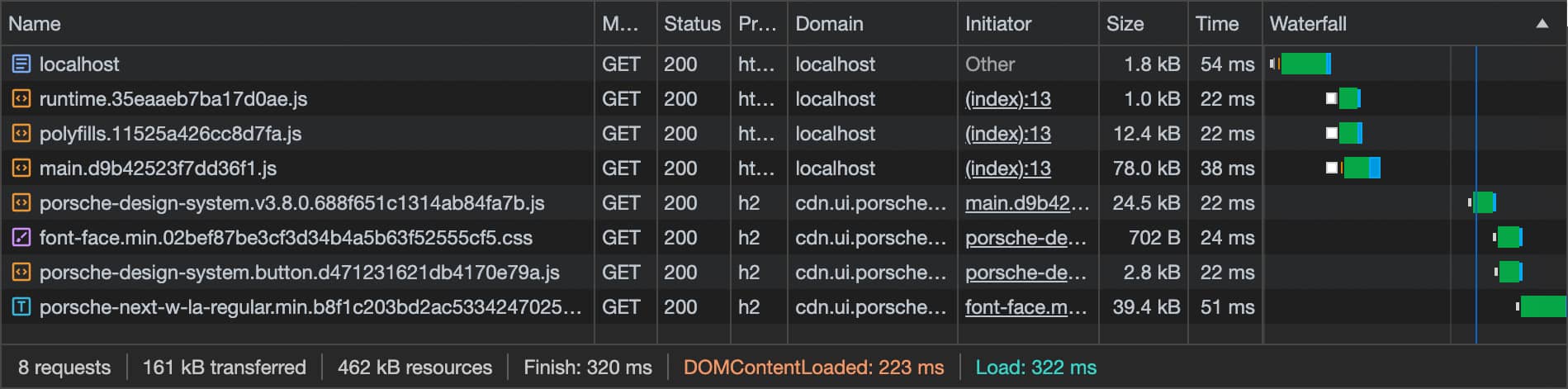

Status Quo
By default, the network traffic looks something like this.
starts with the index.html
then continues with the runtime.js, polyfills.js and main.js bundle of the Angular app
which then loads the core chunk
that injects both the font-face.css and the component chunk
and last the font file after the styles within the component's Shadow DOM are applied

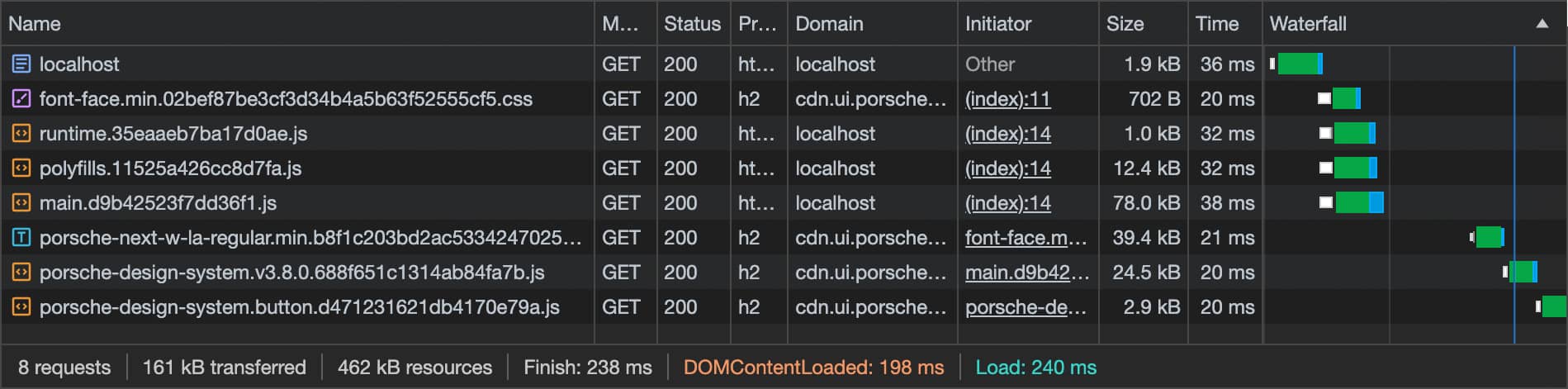

Preloading font-face.css
By applying the getFontFaceStylesheet() partial we can preload the font-face.css
asset.
As we can see, this happens in parallel with the Angular bundles.

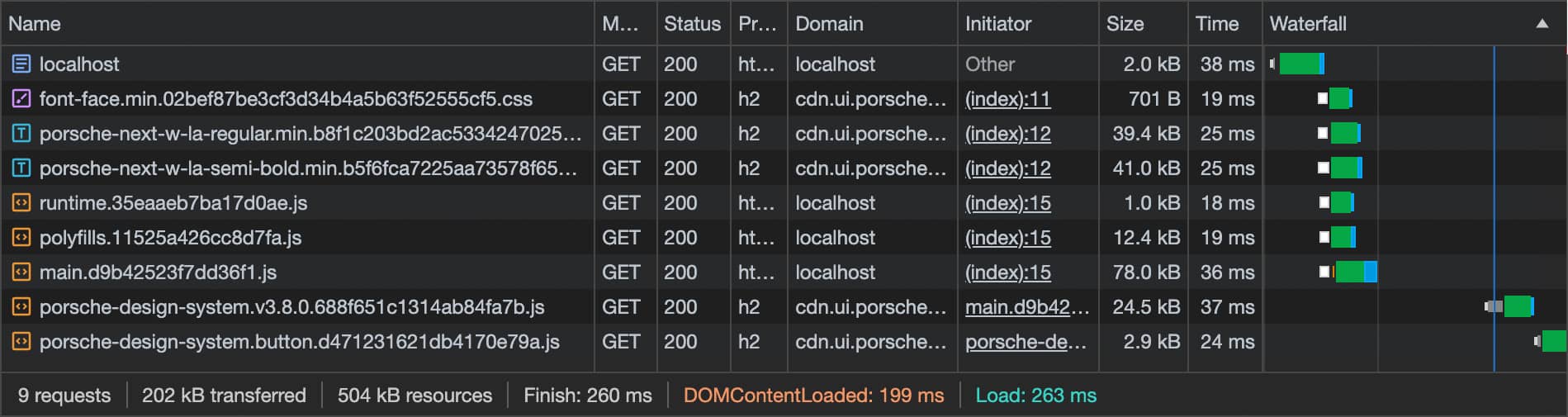

Preloading font files
By applying the getFontLinks() partial we can preload the font assets. As a default, both
regular and semi-bold weights are preloaded since they are most commonly used but this can be customized.
As a result, both font files are additionally loaded in parallel, while earlier this happened not only in sequence but
even last and only when a style is present on the page that uses the font-family and that particular font-weight
which can lead to a phenomena called Flash of Unstyled Text (FOUT).

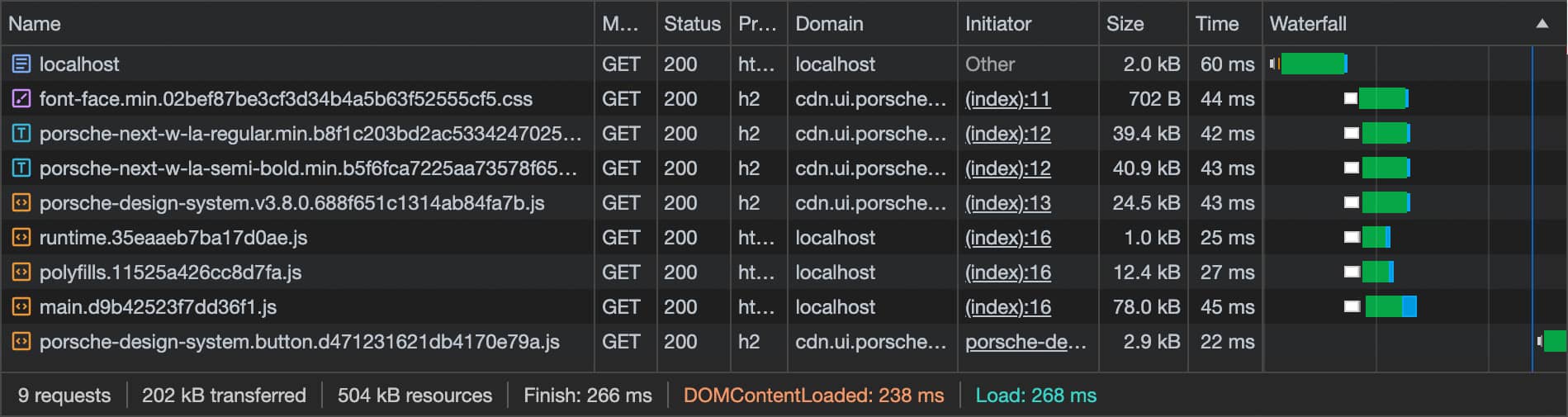

Preloading component chunks
The loading experience can be improved further by using the getComponentChunkLinks()
partial. Without any configuration it simply preloads the core chunk.
Again, with this improvement, the asset is now being loaded in parallel, too.

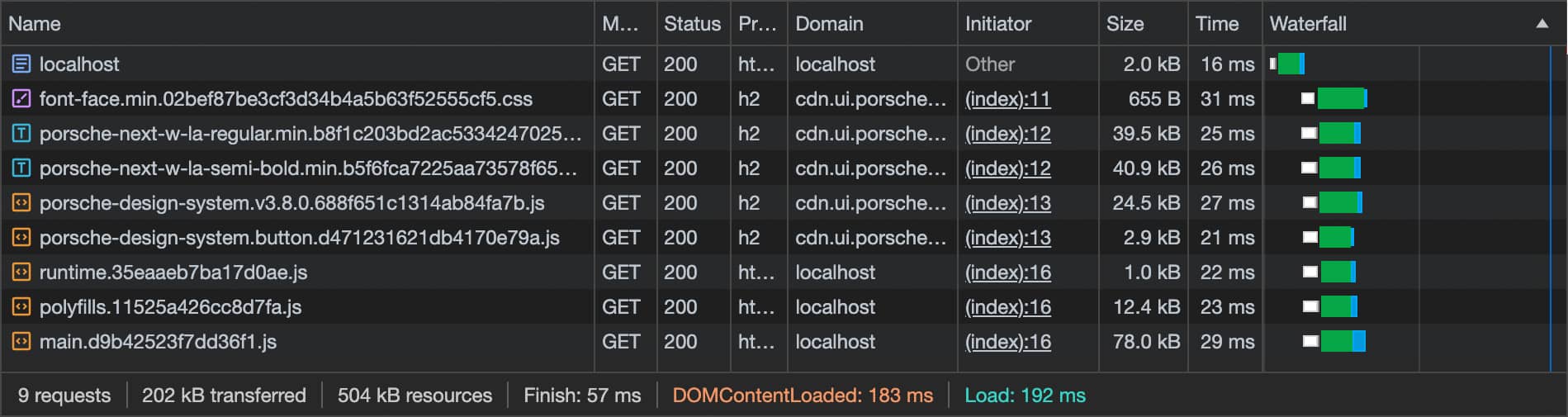

For the next step, we also want to preload the component chunk by using the partial like
getComponentChunkLinks({ components: ['button'] });
Now, everything is preloaded in parallel.
Just preloading all component chunks on the page or even every chunk available should be avoided.
Instead, the most performant but also more complicated approach would be to only preload the component chunks
(and fonts) that are located above the fold which means visible on page load without scrolling.
Applying the getLoaderScript() partial is pointless since there is no benefit because
everything Porsche Design System related is loaded before or at the same time as the Angular app itself. Therefore, the DOM is empty
once the preloaded chunks are available.
